The next generation for innovative coil processing

Slinet Si1275

The next generation for innovative coil processing.

Markets are subject to permanent change.

In sheet metal forming, this also leads to an ever higher complexity of products and processes. The efficient production of blanks for profiles and flashings requires effective, high flexible and user friendly solutions.

Slinet combines best quality with easy use with highest flexibility and automation.

The modular system contains out of 3 modules with can be added flexible to the required setting. The cut to length unit SLINET SI 1275 allows precise cuttings with lowest set up time. With its full automated up to 8 knife setting the SLINET Si1275 allows an automated adjustment for slitting. The cross cut is made by a new innovative roll knife. The system can be added by the automated 4 roll straightening unit. The next module which can be added is the full automated coil storage system.

messerverstellung

AUTOMATED KNIFE ADJUSTMENT

With it is up to 8 knife automated knife adjustment the production of blanks for profiles and flashings can be made fast and easy without manual knife adjustment.

CLAMPING SYSTEM

Thanks of the innovative clamping system the knifes can be locked and positioned perfectly.

spannsystem
Slinet partielles Schneiden

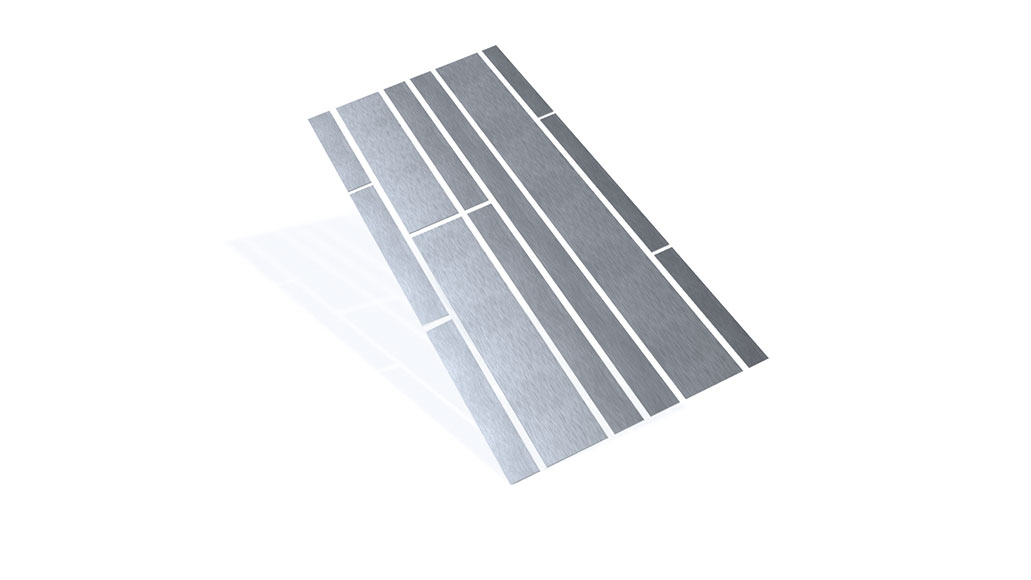

OPTIONAL BRICK CUTTING

The optional brick cutting allows the optimal setting of orders within the coil by having minimum waste strips.

CROSS CUT

The cross cut is made by a roll knife. This cut will not be made from the top as usual. The industry innovation of SLINET allows the cross cut from bottom up. This innovation eliminates scratches which occurs during material handling as the small grade goes up not down.

querschnitt
Antriebskonzept

DRIVE CONCEPT

With the parallel control of several axes and Servo technology different positioning can be made at the same time. This ensures high dynamical movements. The machine works fully electric.

STRAIGHTENING UNIT

The automated straightening unit can be ordered optional. Done by 4 rolls this unit can switch between convex and concave automated.

Richtwerk
Slinet Etikettierer
Slinet partielles Schneiden

SLINET LABEL PRINTER
With the optional barcode label printer, you can network your production and minimize the risk of errors. Information such as the profile name or the order number can be placed arbitrarily and individually on the label. With the office software, a barcode can also be printed on the label which will allow the barcode scanner on the folding machine to open a profile directly. Not only profile characteristics (blank width, k-factor, taper values) but also parameters such as the crowning or the bending sequence defined in the office are thus automatically transferred with the barcode. The application of up to 9 labels is also very efficient. While the metal sheet is coming out, the labels are placed by means of a conveyor belt. When the sheet stops to cut it to length, up to 9 labels are then adhered to the respective strips at the same time. This makes for a very efficient system.

SLINET NESTING SOFTWARE
In order to produce small batch sizes optimally and effectively, several orders can be combined and the cut can be optimized, with the help of the Slinet Optimizer. With the optional partial cutting function, various lengths and widths of multiple jobs can be automatically optimized and cut with minimal waste. The optimization can be done in several ways.

  • The information (quantity, material, width, and length) is transferred from the office software. In addition, the bending sequence and conical dimensions can also be imported via barcodes.
  • Manual optimization via list input if there is no networked software.
  • Optimization takes place after the profiles have been transferred by third-party software (Bendex, NuIT, Sema)

Thus, the optimizer ensures flexible use across a wide range of software solutions. Networked manufacturing reduces the risk of errors and increases profitability.

Fully automatic 2 ton coil storage system

Slinet stands for the next generation of innovative coil processing.

Dynamic coil storage system – flexible to the requested requirements!

An industry innovation is the dynamic coil storage system by SLINET which is different than all existing systems on the market.

In standard the system is made for eight 2 tone coils. The difference is that the storage system of SLINET does not work with fix stations for each coil. The storage system works dynamic. By using each individual outside diameter of each coil the storage system positions the coils not on a fixed station. It optimizes the space automatically. On the same space up to 10 coils can be stored. The storage system is driven by high precise servo motor which works full electric. Each coil axes has an unique ID. Depending on the remaining outside diameter of each coil the axes can be positioned
very close to create additional space. The system can be extended flexible to the requested requirements.

Coillager
achsen_id

Flexible positioning by unique axis ID.

Each axis includes an unique ID. This system ensures that a coil can be positioned at any place within the storage.

Fully automatic 5 ton coil storage system

THE INDUSTRY-INNOVATIVE SLINET STORAGE SYSTEM
is also used for the 5 ton coil storage system. The standard version is designed for 16 5-ton coils in the double-row system. The storage system can also be extended to a three-track system. This then offers space for up to 24 coils. With the optional length extensions, the system can be expanded to more than 40 Coil storage spaces.

THE 5 TON STORAGE SYSTEM
from Slinet does not use fixed coil positions. The positions are dynamically adapted to the coil diameters. Thanks to this flexible storage system, it is possible to store more coils in the same area, depending on the outside diameters of the coils in the system. The storage system is controlled electrically by servo technology. Each coil axis contains a unique ID. In addition, each axis in the storage system is driven and has a braking system. The system can be adapted to your requirements and can be extended further for more coil storage.

Slinet Pro Touch

The SLINET Pro Touch combines efficiency and user-friendliness in an unprecedented
relationship. The control which comes in standard stands for its userfriendliness
and a clear structure.

Technical informations

Maximum bandwidth 1.250 mm
Cutting capacity
Steel 400 N/mm² 0,4 – 1,00 mm
Stainless steel 550 N/mm² 0,4 – 0,8 mm
Alu 190 N/mm² / copper 0,5 – 1,25 mm
Minimal bandwidth 60 mm
Cutting accuracy Klasse „m“ DIN/ISO 2768 (± 0,8 mm/m)
Cutting gap adjustment 0 – 0,75 mm
Longitudinal division up to 8 roller knives
Transverse cutting Roller cutter
Electrics 3 PH 400-480V AC/PE
Compressed air 100 Liter/min , 6 Bar
Dimension L x W x H 9000 x 2300 x 2000 mm
